Max. Discharge Capacity :up to 39.6 GPH

A new generation of advanced metering pump technology!

IX Series Metering Pumps












Iwaki's IX Series are digitally controlled direct-drive diaphragm pumps. Years of experience in high-end motor technology result in extremely accurate and energy efficient metering pumps with high resolution. The IX Series meet today's demand for automated chemical delivery in industries from water treatment to chemical process. Highly precise control offers a solution for a variety of dosing applications.


IX-C Manual IX-C Instruction Manual
IX-D Manual IX-D Instruction Manual
IX Catalog Catalog
IX Sizing Sizing
IX Sizing Exploded View Drawings




Features

  • High Turndown Ratio: Motor control adjusts the discharge and suction speeds to meet a full and accurate turndown ratio of 750:1 (300 L/h to 200 mL/h)

  • High Accuracy: Combined with precise motor control, an efficient valve design maintains accurate flow rates allowing a low cost, mechanically-driven diaphragm pump to achieve a high accuracy of ±1%.

  • Energy Savings: Helical gears and return springs reduce power consumption by up to 70% compared to conventional motor-driven mechanical diaphragm metering pumps.

  • .High Compression Pump Head Design: A fixed stroke length maintains a high compression ratio in each stroke resulting in fast priming and no air-lock at any flow rate.

  • Flexible, User-friendly Interface: The controller position can be ordered in 6 positions for operator convenience and ease of use after installation.

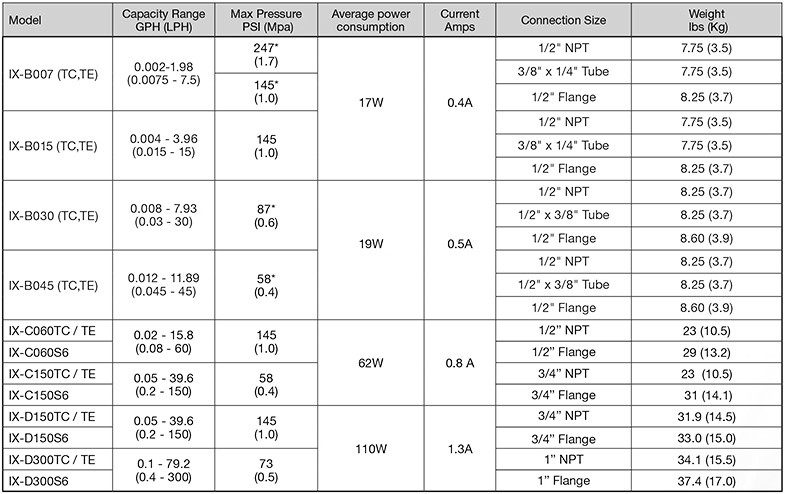

Specifications
Model Max Capacity GPH (LPH) Max Pressure PSI (MPa) Average Power Consumption Current Amps Connection Size Weight
LBS (KG)
IX-C060TC/TE
0.02 - 15.6
(0.08 - 60)
145 (1.0) 62W 0.8A 1/2" NPT 19.9 (9.0)
IX-C060S6
26.4 (12.0)
IX-C150TC/TE
0.05 - 39.6
(0.2 - 150)
58 (0.4) 3/4" NPT 19.9 (9.0)
IX-C150S6
28.6 (13.0)
IX-D150TC/TE
0.5-39.6
(0.2-150)
145 (1.0) 110W 1.3A 3/4" NPT 31.9 (14.5)
IX-D150S6
33.0 (15.0)
IX-D300TC/TE

0.1-79.2
(0.4-300)

73 (0.5) 1" NPT 34.1 (15.5)
IX-D300S6
37.4 (17.0)
  • Maximum discharge capacity is rated with clean water at ambient temperature at maximum discharge pressure. Output may
    increase as pressure decreases.
  • Maximum viscosity :IX-C: 1000 cps IX-D: 300 cps (standard pumps - consult factory for higher viscosities)
  • Liquid temperature range: 0 -50°C (TC, TE type), 0-80°C (S6 type). No viscosity change. Non freezing. No slurry.
  • Operating temperature range: 0-50°C (Indoor use only)
  • Operating humidity range: 0-90% RH (Non-condensing in the controller)
  • Maximum dry suction lift is 6.5 ft. (2m).
  • Accuracy is not guaranteed at flows below 0.5GPH (2 LPH) for IX-D300S6, 0.26GPH (1 LPH) for IX-C150S6 or
    0.11GPH (0.4 LPH) for IX-C060S6.
  • Pumps should always be shielded from direct exposure to the elements
